LTL S1001 Ultra-Compact RF Shielded Box for EMI/EMC Pre-Compliance Testing
Portable high-isolation RF test enclosure designed for small devices, rapid testing, and space-constrained labs

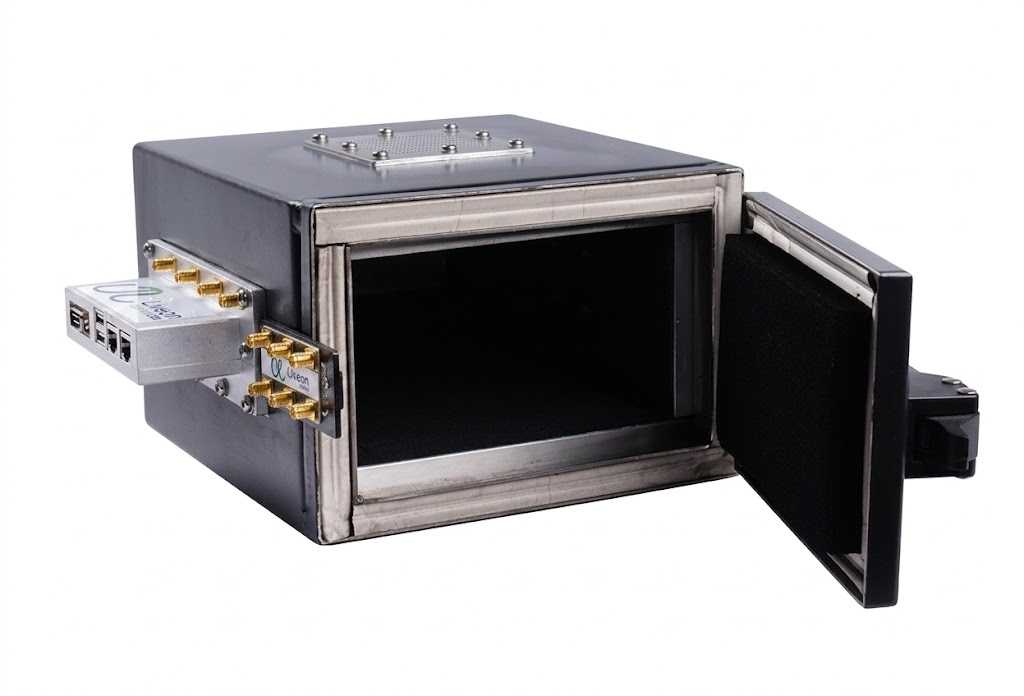

The LTL S1001 RF Shielded Box from Liveon Technolabs is a compact and portable EMI/EMC testing enclosure designed for engineers working on small electronic modules and PCB-level devices. Its ultra-compact form factor makes it ideal for space-constrained labs and rapid testing environments where flexibility and efficiency are critical.
This RF shielded enclosure is widely used in R&D labs, electronics prototyping, and early-stage wireless product development for quick and reliable EMI/EMC validation.
High Shielding Effectiveness up to 90 dB
EMI Filtered Power & Data Interfaces
High Performance RF Absorber Lining
Customizable RF I/O Interface Panel
TECHNICAL SPECIFICATION
Shielding Effectiveness (TYPICAL)
- 90dB @ 1 GHz
- 90dB @ 3 GHz
- 80dB @ 6 GHz
Dimensions & Weights
- External : 5.9" H × 8.66" W × 9.6" D
- Internal : 3.9" H × 6.66" W × 7.6" D
- Weight (Approx.) : 24 Kg
- Frequency Range : 20 MHz to 12 GHz
KEY FEATURES
- Ultra-compact enclosure for portability and flexibility
- Pre-configured I/O interface for faster setup
- EMI-shielded ventilation design
- EMI-filtered power input system
- Compact and portable enclosure design
- High performance shielded ventilation
- Durable powder coated finish
- Customizable connector panel configurations
